When your AV system fails, it can disrupt operations, damage reputations, and lead to costly downtime. A redundant AV system prevents this by using backup hardware, software, and network components to ensure uninterrupted performance. Here’s what you need to know:

  • Redundancy is key: Duplicate essential hardware like projectors, audio processors, and network switches. Use backup power supplies and mirrored software configurations.
  • Failover systems: Choose between automatic (fast, but costly) or manual (slower, but simpler) failover mechanisms. Hybrid systems combine both for flexibility.
  • Synchronization matters: Ensure primary and backup systems have identical settings for firmware, resolutions, control programming, and network configurations.
  • Testing and maintenance: Regularly test failover systems and maintain hardware to avoid unexpected failures. Use monitoring tools to catch issues early.

This guide outlines how to build a reliable redundant AV system, covering hardware, software, failover options, and maintenance practices. Follow these steps to minimize risks and keep your operations running smoothly.

Hardware Redundancy Checklist

Required Hardware Components for Redundancy

When planning for hardware redundancy, it’s essential to identify the key components that need backups. Start with video processors, as they manage signal routing and conversion between sources and displays. To ensure seamless operation, use identical primary and backup units, allowing for automatic switchover in case of failure.

Next, consider audio equipment. This includes digital signal processors (DSPs), amplifiers, and mixing consoles. Duplicating these components is crucial to avoid interruptions in audio output. Each backup unit should mirror the primary system’s configuration.

Control systems are another critical piece of the puzzle. These systems coordinate everything from lighting to display switching. To maintain functionality during a failure, redundant control processors are a must. Backup controllers should replicate all settings from the primary unit to ensure smooth operation.

For display devices like projectors and large-format screens, backup units should be installed in key areas. These backups can be activated immediately, minimizing downtime in case of a malfunction.

Don’t overlook the network infrastructure. Components such as switches, routers, and media converters need duplication to prevent network issues from affecting the entire system. Establish redundant network paths to ensure continuous data flow, even if one connection fails.

Finally, source devices like computers, media players, and streaming equipment require identical backups. These backups should be pre-configured with the same content as the primary devices to avoid delays during presentations or events.

Once the hardware is in place, focus on securing physical connections and power supplies to guarantee independent operation of both primary and backup systems.

Physical Connections and Power Backup

After duplicating hardware, the next step is ensuring robust physical connections and power supplies. Place primary and backup equipment on separate power circuits to reduce the risk of simultaneous failure. Backup equipment should be mounted on independent panels with adequate load capacity.

For critical AV components, Uninterruptible Power Supply (UPS) systems are essential. A UPS should provide at least 15-20 minutes of runtime, giving enough time to either restore power or transition to backup generators. When sizing UPS units, base your calculations on the actual power consumption of the connected devices rather than their maximum ratings. For extended outages, integrating with building generators is a smart move to maintain operations.

To further safeguard connections, route primary and backup cables through separate conduits. This minimizes the risk of damage affecting both sets of cables simultaneously. Use distinct labels or color coding to differentiate cables easily.

Fiber optic connections are particularly useful for long cable runs or areas prone to electromagnetic interference. Set up redundant fiber paths along separate routes to provide an additional layer of protection against disruptions.

Lastly, ensure that all critical devices have redundant input/output connections. Many professional AV devices are designed with multiple I/O options specifically for redundancy purposes.

Manual vs. Automatic Failover Systems

Choosing the right failover system depends on your setup’s complexity and response time requirements.

Automatic failover systems rely on monitoring software and hardware switches to detect issues and activate backup equipment without human intervention. These systems are fast, typically switching over within 2-5 seconds of detecting a failure. However, they come with higher initial costs, require more complex programming, and may occasionally trigger false alarms.

Manual failover systems, on the other hand, need staff to activate the backup equipment. While this approach introduces a delay – ranging from 30 seconds to several minutes – it allows for human oversight, ensuring the backup system is functioning correctly before completing the transition. This method is simpler and more cost-effective but requires trained personnel and may not be practical for after-hours operation.

Failover Type Pros Cons
Automatic Quick response (2-5 seconds), No human intervention needed, Operates 24/7 Higher setup cost, Complex to program, Risk of false triggers
Manual Lower cost, Human verification, Easier to set up Slower response (30+ seconds), Needs trained staff, Limited to staffed hours

For the best of both worlds, consider hybrid systems. These combine automatic detection with manual activation, alerting staff when an issue is detected before switching to backup components. This approach ensures faster response times while still benefiting from human oversight.

Regardless of the failover method, monitoring integration is critical. Install sensors and monitoring software to track the health of both primary and backup systems. Proactive monitoring helps identify potential problems before they lead to failures and ensures that backup equipment is always ready for use.

The choice between manual, automatic, or hybrid failover systems should align with your operational needs and the level of technical support available. Smaller setups with dedicated AV staff might find manual systems sufficient, while larger facilities or unmanned locations often require the speed and reliability of automatic systems.

Software and System Configuration Checklist

Software Synchronization and Settings

To keep your primary and backup systems aligned, you’ll need to synchronize software settings across all devices. Start by ensuring both systems run the same firmware versions. Any version mismatch can lead to compatibility problems during failover, potentially causing system crashes or unexpected behavior.

When it comes to audio, maintain a consistent sample rate of 48 kHz across all devices. Mixed sample rates can lead to audio dropouts, sync issues, or even complete failure during a switchover. This applies to everything in your signal chain – digital signal processors, audio interfaces, and recording equipment.

For video, make sure frame rates, resolution, and color space are identical on all devices. Use EDID management to maintain consistent communication between displays and processors. Both primary and backup video processors should output the same signals to avoid flickering screens or format issues when switching systems.

Your control system programming also needs to match perfectly. Both primary and backup control processors should use the same programming files, including macros, presets, and user interfaces. A master configuration file is a great way to ensure consistency – it can be deployed to both systems simultaneously, reducing the risk of outdated programming.

Networking is another critical area. Assign unique IP addresses to each system while keeping VLAN configurations, subnet masks, and gateway settings consistent. Enable NTP synchronization to ensure accurate timestamps for logs and scheduling.

For systems that store user preferences, presets, or schedules, database synchronization is essential. Set up automated replication between the primary and backup systems, with updates every 15-30 minutes. This ensures that user data and scheduled events stay consistent, no matter which system is active.

Once your settings are synchronized, you’ll want to use the right tools to monitor and manage these configurations.

Redundant System Configuration Tools

Specialized tools can make managing redundant systems much easier. Start with system monitoring software to track the health of both primary and backup components. Configure SNMP monitoring for network-connected devices to receive real-time alerts when something goes wrong.

Set up automated backup scripts to save system configurations daily during off-hours. These backups should be timestamped and stored on a separate network location to protect against hardware failures. Most professional AV systems allow you to export configurations through their management interfaces.

For systems with heavy workloads, load balancing tools can help. Configure them to monitor CPU usage, memory load, and network bandwidth. If the primary system’s resources exceed 80% utilization, the load balancer can shift some of the workload to the backup system automatically.

Create health monitoring dashboards to provide real-time visual indicators for all redundant components. These dashboards should display key metrics like power status, network connectivity, temperature, and processing loads. Set alert thresholds to notify you when any parameter moves out of its normal range.

Remote management is another must-have. Use secure VPN access and remote desktop connections to allow technicians to troubleshoot and configure systems without being on-site. Make sure remote access credentials are secure and updated regularly.

For tracking changes, implement version control systems. These tools allow you to log who made changes, when they were made, and what was altered. This kind of change logging is invaluable for troubleshooting and meeting compliance requirements.

Finally, thorough documentation ties everything together.

System Documentation Requirements

Clear and detailed documentation is a cornerstone of effective system management. Start with system architecture diagrams that outline the relationship between primary and backup systems. Include network topology, signal flow paths, and power distribution, using standardized symbols and color coding to differentiate between primary and backup components.

Keep an updated inventory of all equipment. This should include model numbers, serial numbers, firmware versions, and physical locations for every device. Maintain separate inventories for the primary and backup systems, but cross-reference related components for clarity.

Prepare step-by-step failover procedures for emergencies. These should cover both manual and automatic failovers, with decision trees to help staff determine the correct course of action quickly.

Develop troubleshooting guides for common issues. Each guide should include typical symptoms, possible causes, and step-by-step solutions. Add contact information for technical support, vendors, and emergency services, organized by system component for quick access.

Document your backup schedules, detailing when backups occur, where they’re stored, and how to restore them. Include recovery time estimates for different scenarios – like 15 minutes for simple configuration restorations or 2-4 hours for full system rebuilds.

Maintain maintenance logs to track all service activities for both systems. Record inspections, updates, hardware replacements, and performance tweaks. These logs help you spot patterns that might indicate developing problems and ensure both systems get equal attention during maintenance.

Provide user training materials so staff can recognize failures and respond appropriately. Include screenshots of normal system displays alongside examples of error conditions. Distribute quick reference cards that staff can keep on hand during events or presentations.

Finally, implement document version control to keep everyone working with the most current information. Assign someone to update documentation after system changes and review it for accuracy. Store this information in multiple locations – both digital and physical – so it’s accessible even during failures.

Testing and Validation Procedures

Pre-Installation Testing

Before deploying the system, it’s essential to bench test every component. Start by powering up each part to verify boot sequences and ensure firmware integrity. Check the audio and video signal paths to confirm consistent performance across all operational modes.

Test both the primary and backup systems to ensure they communicate effectively, even under heavy network load. Confirm that all control interfaces – whether touch panels, mobile apps, or hardware controllers – respond as expected and can switch seamlessly between systems. Additionally, test power failover functionality to guarantee uninterrupted operation during outages.

Failover Testing and Monitoring

Once individual components are verified, move on to system failover validation. Begin with manual failover tests by disconnecting the primary network to confirm the backup system activates immediately.

Simulate various failure scenarios by disabling key components to observe how quickly the system transitions to backups. Record the performance of each switchover to identify any delays or issues.

Implement monitoring tools to track critical parameters in real time, such as audio levels, video quality, and network connectivity. Configure automated alerts to notify your technical team immediately when anomalies occur, ensuring rapid intervention to minimize downtime.

Recording Test Results

After confirming failover performance, document all test results for future reference and system improvement. Use standardized templates to log performance metrics, switchover times, and any detected anomalies. Cross-check manual observations with automated logs to fine-tune the system’s response.

Following each major test or real-world event, review overall system performance and redundancy measures. Use these findings to refine your processes and improve reliability over time.

Create and maintain an up-to-date incident response plan based on your test outcomes. This plan should outline diagnostic steps, assign specific roles to technical staff, and establish clear communication protocols. Store all test documentation in both digital and printed formats to ensure critical information is accessible, even if one storage method fails.

sbb-itb-ce552fe

Maintenance and Support

Once a system is installed and tested, keeping it running smoothly over time requires consistent maintenance efforts.

Regular Inspections and Updates

It’s important to routinely check hardware for common issues like dust buildup, loose connections, or overheating. Using sensors to monitor temperature and humidity levels can help you catch potential problems early – alerts for unusual conditions are a must.

Keep firmware and software updates in sync between your primary and backup systems. To minimize disruptions, update one system at a time during off-peak hours.

Don’t overlook your network infrastructure. Regularly inspect Ethernet cables, switches, and routers to ensure everything is secure and functioning. If you spot any damage or signs of performance decline, replace the faulty components immediately. A reliable backup network path should always be ready to step in if needed.

Staff Training and Troubleshooting

Well-trained staff are key to smooth operations. Provide technical teams with hands-on training for routine tasks and simulated failure scenarios to prepare them for real-world challenges.

Develop clear, role-specific materials that outline each team member’s duties during system issues. Keep these materials up-to-date whenever you make changes to system configurations or add new equipment.

Maintain an emergency contact list that includes vendor support numbers, internal escalation procedures, and backup technician details. Thorough training also ensures accurate incident documentation when problems arise.

Maintenance and Incident Logging

Document every maintenance activity – whether it’s an inspection, component replacement, software update, or configuration change. Each log entry should include the date, time, technician name, and a brief description of the work done.

If a system failure or anomaly occurs, record all relevant details: symptoms, downtime duration, root cause, and corrective actions. Experts stress the importance of detailed records for both troubleshooting and compliance purposes.

To streamline this process, use digital logging tools that automatically track performance metrics, error conditions, and system state changes. Store these logs in multiple locations, such as a combination of cloud storage and local backups, so they’re accessible even during outages. Regularly review these logs to spot patterns and address recurring issues before they escalate.

ESI Technologies‘ Role in Redundant AV Systems

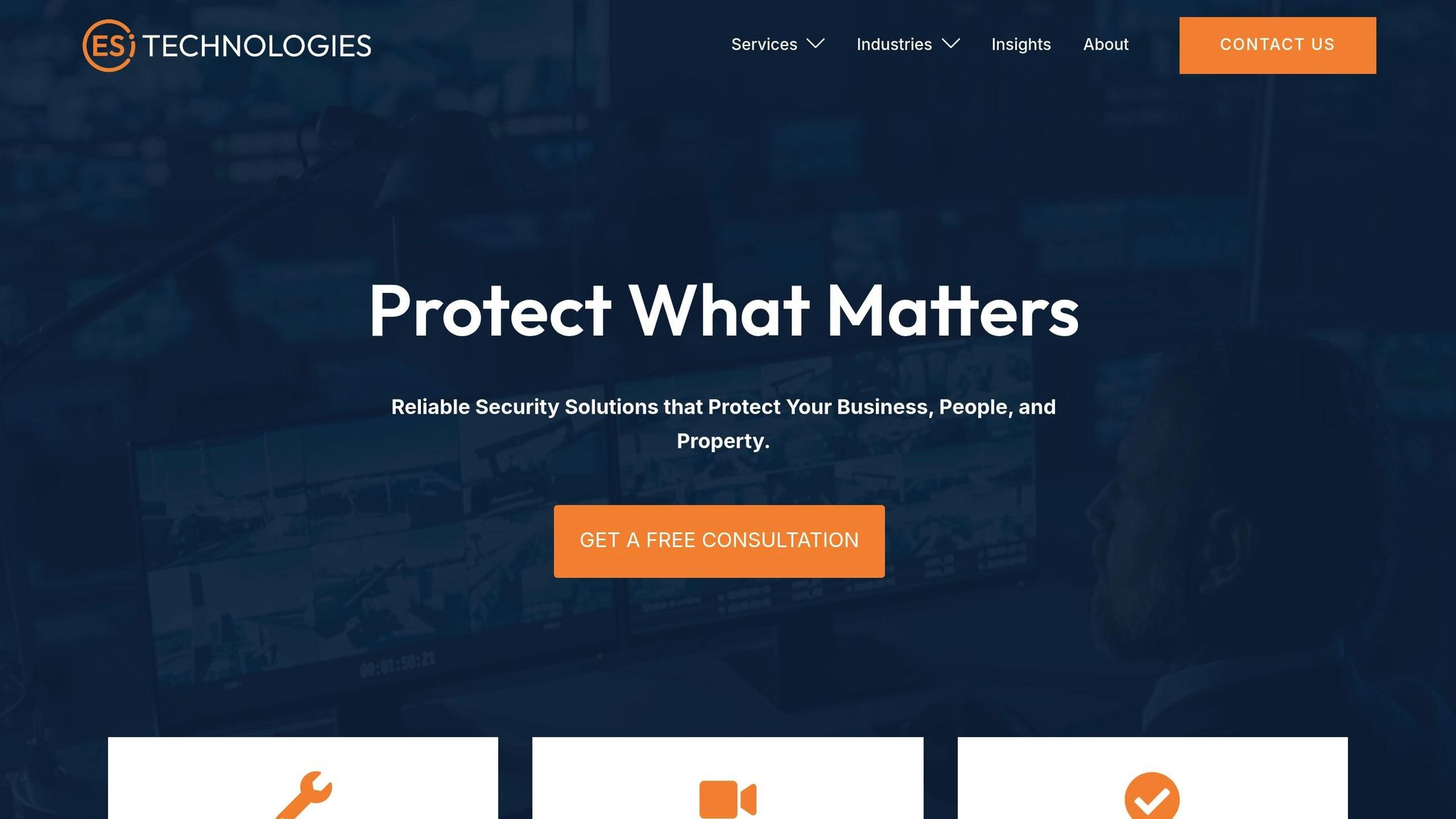

ESI Technologies

ESI Technologies specializes in delivering dependable, customized audio-visual solutions tailored for critical operations. Their expertise ensures that every system is integrated within a robust security framework, offering precise installation and ongoing support to keep your systems running smoothly over time. This approach guarantees that all redundancy measures are implemented effectively and professionally.

Custom Redundant AV Integration Services

Every integration project at ESI Technologies is designed to meet your specific redundancy needs. Their team conducts a detailed evaluation of your business requirements and existing infrastructure, recommending and implementing audio-visual solutions that prioritize system reliability. These tailored solutions are built to match the unique demands of your operations.

24/7 Monitoring and Support

To complement their hardware and software redundancy efforts, ESI Technologies provides round-the-clock monitoring services. Using advanced tools and real-time alerts, they can quickly identify and address any irregularities, minimizing downtime and ensuring uninterrupted operations. This proactive approach is key to maintaining consistent system performance.

Maintenance and Support Plans

ESI Technologies takes a proactive stance on system upkeep, offering comprehensive maintenance plans that include regular inspections, firmware updates, and performance checks. They also provide hands-on staff training sessions, equipping your team with the knowledge to manage and operate the systems confidently. These services are seamlessly integrated into the broader redundancy strategy, ensuring your systems remain reliable and efficient over time.

Conclusion

The checklist and guidelines discussed earlier lay out a clear path for building reliable redundant AV systems. Successfully implementing such systems demands careful planning, precise execution, and ongoing maintenance. This guide serves as a practical framework for creating systems that can handle failures and ensure uninterrupted operations when it matters most.

Key Takeaways

Redundancy is a must-have in AV setups, safeguarding your investments and ensuring systems continue to operate during failures. Without it, a single malfunction can bring everything to a halt, disrupting critical business functions.

Strategic planning is the backbone of any effective redundant AV system. By analyzing your system’s unique requirements, pinpointing mission-critical components, and identifying potential weak points, you can prioritize redundancy measures where they’re needed most.

Redundancy should cover all essential components. This includes duplicate hardware, backup power systems, redundant signal paths with automatic switching, and multiple network pathways with failover capabilities. Don’t overlook software backups, content duplication, and training staff to handle emergencies effectively.

Regular testing is crucial to ensure your system performs as expected during failures. Test failover mechanisms and backup solutions frequently, and use monitoring tools to catch potential issues before they escalate.

Proactive maintenance keeps systems running smoothly. Routine cleaning, inspections, firmware updates, and performance monitoring can help avoid unexpected downtime and extend the life of your equipment.

These principles provide a solid foundation for improving your AV infrastructure.

Next Steps for Businesses

Use this guide as a framework to evaluate your current AV systems. Identify gaps, prioritize upgrades based on the importance of each component, and implement redundancy measures in phases that align with your budget and operational goals.

Consider working with professionals who specialize in redundant AV systems. Their expertise can be invaluable for proper implementation, ongoing monitoring, and effective maintenance, especially if your internal team lacks the required technical knowledge.

Keep your system documentation up-to-date. Include diagrams, maintenance schedules, testing protocols, and emergency response plans. These resources are critical for troubleshooting, training staff, and planning future upgrades.

Finally, view redundancy as a continuous process, not a one-time fix. As technology advances and your business needs evolve, regularly reassess and refine your redundancy strategies to ensure your AV systems stay dependable and effective over time.

FAQs

What are the pros and cons of using hybrid failover systems in a redundant AV setup?

Hybrid failover systems in a redundant AV setup bring together the strengths of hardware and software redundancy. This combination helps ensure systems remain functional during outages, offering flexibility and resilience that’s especially valuable in dynamic environments like hybrid workplaces. By integrating multiple backup solutions, these systems reduce the risk of downtime and help maintain consistent performance, making them a solid choice for complex setups.

That said, there are some hurdles to keep in mind. Setting up and managing these systems can be trickier due to their complexity, and the upfront costs may be higher because of the extra components required. Compatibility between different systems can also pose challenges, potentially leaving gaps in protection if not handled carefully. Thoughtful planning and execution are essential to get the most out of hybrid failover systems.

What steps can businesses take to keep their redundant AV systems synchronized and up to date?

To keep redundant AV systems running smoothly and in sync, businesses should make it a habit to apply firmware and software updates from manufacturers. Once updates are installed, conducting thorough system tests is key to ensuring everything operates as it should.

Incorporating synchronization protocols like genlock or timecode, along with dual clocks and failover mechanisms, helps maintain accurate timing and boosts system reliability. Regular inspections and periodic testing are equally important for spotting potential problems early and preserving the system’s integrity over time.

By staying on top of updates and maintenance, businesses can ensure their AV systems deliver consistent performance and dependability in the long run.

How can I test and maintain redundant AV systems to ensure they work reliably?

To keep your AV systems running smoothly and reduce the chances of unexpected breakdowns, consider these practical tips:

  • Schedule regular maintenance: Set up routine checks to inspect components, update firmware, and perform system performance tests. This helps ensure everything works as it should.
  • Test backup systems: Make it a habit to verify that backup components and contingency plans are fully operational and ready to step in when needed.
  • Inspect and clean equipment: Regularly examine hardware for wear and tear, clean devices, and calibrate them to maintain peak performance.
  • Monitor system conditions: Keep track of system temperatures and replace outdated or aging equipment to prevent potential malfunctions.

Staying ahead with maintenance and routine testing not only boosts the reliability of your AV system but also extends its lifespan while minimizing disruptions.
