Exit alarms and access control systems are essential for securing buildings while ensuring safe evacuations during emergencies. Integrating these systems enhances safety, simplifies compliance with U.S. codes like NFPA 101 and IBC, and improves emergency response. Here’s a quick summary of how to make it work:

  • Understand the Systems: Exit alarms monitor emergency exits, while access control systems manage who can enter or exit using credentials like keycards or biometrics.
  • Why Integrate?: Combined systems allow automatic door locking/unlocking during emergencies, streamline evacuations, and ensure compliance with safety codes.
  • Key Compliance Standards: NFPA 101, IBC, ADA, NFPA 72, and NFPA 731 dictate how systems should function, prioritizing life safety and accessibility.
  • Hardware Needed: Fire alarm panels, relays, REX devices, door sensors, access control panels, backup power, and notification devices.
  • Integration Steps:
    1. Check system compatibility.
    2. Connect and configure hardware (e.g., relays, locks, fire panels).
    3. Test thoroughly to ensure compliance and functionality.

Integrating these systems reduces response times, improves safety, and provides long-term savings, but it requires careful planning, compliance checks, and regular maintenance. Professional support can ensure a reliable setup tailored to your needs.

Compliance Requirements and Hardware Needed

After exploring the advantages of secure exit alarm systems, it’s time to dive into the nuts and bolts: compliance standards and the hardware required. To ensure both safety and functionality, it’s crucial to align your system with applicable codes and select the right equipment. In the U.S., building codes emphasize life safety, requiring systems to unlock doors during emergencies while maintaining security in normal conditions. Let’s break down the key standards and hardware components you’ll need to meet these requirements.

Key Compliance Standards

NFPA 101 (Life Safety Code) is the cornerstone for integrating exit alarms with access control systems. This code mandates that systems prioritize life safety by allowing unobstructed exits during emergencies. For example, delayed egress locks must release within 15–30 seconds when triggered by an emergency. Additionally, manual release devices labeled "PUSH TO EXIT" must be installed within 5 feet of access-controlled doors, mounted 40–48 inches above the floor, and capable of unlocking the door for at least 30 seconds.

"Life safety and building codes are more concerned with the ability of individual to exit the building through these locked doors." – National Training Center

International Building Code (IBC) complements NFPA 101 by providing detailed egress requirements. These include guidelines on the number of exits, fire-resistance ratings, and travel distances. The IBC also incorporates standards like NFPA 70 (National Electrical Code) and NFPA 72 (National Fire Alarm and Signaling Code), ensuring a comprehensive approach to safety.

Americans with Disabilities Act (ADA) Standards focus on accessibility, requiring that controls such as card readers and keypads be mounted no higher than 48 inches from the floor with sufficient clear space for wheelchair users. Door hardware must be operable with one hand and without tight grasping. Alarm systems should include audible, visual, or tactile alerts to accommodate all occupants.

"If a person with limited mobility cannot open a secured door or exit during an emergency, the results could be life-threatening." – Bridge Cable

NFPA 731 (Standard for the Installation of Electronic Security Systems) addresses the installation of physical access control systems, requiring compliance with ANSI/UL 294 standards. This ensures that all locking hardware, especially for delayed egress systems, meets stringent safety and performance criteria.

NFPA 72 (National Fire Alarm and Signaling Code) offers guidelines for fire alarm systems integrated with access control. Alarm systems must provide clear evacuation signals and ensure synchronized strobe lights flash at safe intervals to avoid health risks.

Hardware Required for Integration

To meet compliance standards, your system must include UL 294-listed components that work seamlessly together. Here’s what you’ll need:

  • Fire alarm panels: These serve as the central hub, available in conventional (zone-based) or addressable (device-specific) formats. They detect and report fire activity while coordinating with access control systems.
  • Fire alarm relays: These connect fire alarms to access control systems, ensuring doors unlock during emergencies. Often paired with magnetic locks (maglocks), these relays ensure secure locking during regular operations and automatic release in emergencies.
  • Request-to-exit (REX) devices: Devices like motion detectors and push buttons signal the system to release doors when occupants intend to exit.
  • Door position sensors: These monitor whether doors are open or closed, providing real-time updates to access control systems.
  • Access control panels: These must be compatible with fire alarm systems to process emergency unlock signals. Detection devices such as smoke alarms and heat detectors provide critical data for system operation.
  • Notification devices: Strobes, sirens, voice systems, and specialized equipment like bed shakers ensure all occupants, including those with hearing impairments, are alerted during emergencies.
  • Backup power controllers: These ensure the system remains operational during power outages, guaranteeing doors unlock even if the main power supply fails.
  • Exit alarms: These monitor emergency exit doors, alerting security personnel if they’re opened during non-emergency situations.

All selected hardware must operate on a "fail-safe" principle, meaning any system failure will default to allowing safe egress rather than maintaining locked doors. This ensures compliance with safety standards while setting the groundwork for the integration steps to follow.

Step-by-Step Integration Guide

Integrating exit alarms with access control systems can enhance safety and compliance when done correctly. This guide walks you through the process, step by step, to help you avoid errors and ensure a reliable setup.

Check System Compatibility

Before diving into wiring or software configuration, take a close look at how well your current systems work together. Compatibility issues often stem from differences in communication protocols, standards, or technologies used by various manufacturers.

Start by analyzing the core functionalities of both systems. Look at user management features, credential types, access levels, and group structures. Map these components from the access control system to their counterparts in the exit alarm system. For instance, if your access control system uses proximity cards, figure out how the exit alarm system will recognize and respond to those credentials in emergencies.

Pay attention to potential technical mismatches, like variations in voltage requirements, signal types, or response times, as these need to be resolved for smooth integration. Also, ensure that communication protocols and industry standards align, as these are common sources of trouble.

If you’re working in a commercial building, check how the building’s power system or fire panel interacts with your access control panel, especially for fire relays. For complex setups or mixed-generation equipment, consider hiring a professional to help navigate potential pitfalls. Addressing compatibility issues upfront is crucial for creating a secure and responsive system.

Connect and Configure Hardware

Once you’ve confirmed compatibility, it’s time to connect the hardware components. The process will vary depending on the type of exit alarms and integration points involved.

Identify the alarm type and integration point. You could be working with standalone exit alarms or alarms integrated into devices like Request-to-Exit (REX) switches, door position switches, or Fire Alarm Control Units (FACUs). Each type requires a specific approach.

For general alarms, such as door prop or unauthorized exit alerts, connect the alarm output to the designated access control input. For fire alarm integration, link the FACU directly to an IP reader using hard wiring or connect a backup power controller to both the FACU and the access control power supply. If your building uses an integrated power system, connect the fire relays on your access control panel to the fire panel using the provided cable.

Ensure that all electronic locks are wired to the access control system’s power supply, typically via relays in a central power control box. Configure the locks to operate in "Fail Safe" mode, so doors automatically unlock during a power outage – a critical safety measure.

As Mark McRae from Inaxsys Security Systems puts it:

"The best alarm and access integrations are hardware-based and do not rely on any software to make decisions."
– Mark McRae, Inaxsys Security Systems

After the hardware is connected, move on to software configuration. Use your access control management system to define rules or "Access Plans" that link specific alarm triggers to actions. For fire alarms, set the system to unlock all connected doors when triggered. For other alarms, create rules for notifications (via email or text), activating CCTV, or logging events. You can also configure relay outputs to perform specific actions, like signaling a DVR or another security system, based on event triggers. For advanced setups, you might adjust door behavior dynamically, such as requiring both a card and PIN in high-security areas.

Test and Verify Compliance

Testing is the most critical part of the integration process. It ensures that all components work as they should, especially during emergencies, and that the setup complies with building codes and safety standards.

Start by testing each component, including egress devices, redundant release mechanisms, and fire alarm interactions, to confirm proper responses during simulated emergencies. For example, verify that delayed egress locks release according to NFPA 101 standards.

Engage certified professionals, like NICET or NBFAA Level 1 technicians, to oversee the testing and validate system performance. Coordinate with local building authorities and Authorities Having Jurisdiction (AHJs) to review compliance with code requirements. Scheduling meetings with county officials can help ensure your setup aligns with their expectations.

As Mike DiCesare, Installation Manager at Force Security, warns:

"A malfunctioning magnetic lock that fails to release during an emergency could potentially trap people inside a building, leading to dire consequences. It’s not just about slapping a lock on a door and calling it a day. Every component in a life safety system plays a crucial role."
– Mike DiCesare, Installation Manager, Force Security

Plan inspections at key stages of the integration. Inspectors will review connections, structural mounting, and electrical systems to confirm compliance. You may also consider certification from organizations like UL Solutions or Intertek to test against standards such as UL 294. Be aware of which code edition (e.g., 2018 vs. 2013) applies in your jurisdiction, as this can significantly impact compliance.

Document all testing results, including project drawings, engineering reports, and technical specifications. Once testing is complete, set up regular maintenance protocols. Ongoing checks and service agreements ensure the system continues to function properly. Remember, compliance isn’t a one-time task – it requires consistent attention over time.

Benefits and Challenges of Integrated Systems

When it comes to creating a unified security setup, integrating systems like exit alarms with access control can offer impressive advantages, but it also presents some hurdles. Weighing these pros and cons will help you determine if this approach aligns with your facility’s needs.

Benefits of Integration

Better Security and Faster Incident Handling

Integrated systems streamline security by combining tools like CCTV, real-time alerts, and incident logging into a single network. This setup can cut response times dramatically – by as much as 60–80%.

Financial Savings Over Time

While the upfront costs might seem steep, the savings can be substantial. These systems reduce internal theft by 35–50%, save $200–500 per employee each year, and lower administrative costs by 30–40%. Plus, many insurance providers offer discounts of 5–15% for facilities with integrated security systems.

Easier Compliance and Emergency Preparedness

Automated systems help ensure your facility meets safety codes while simplifying emergency procedures. As Jay Palter, Vice President of Marketing & Partnerships at Real Time Networks, explains:

"Integrating your security systems simplifies this process, ensuring compliance with building codes and significantly improving the safety of your premises."

Common Challenges

Complexity of Integration

Bringing different security components together isn’t always straightforward. Variations in hardware and communication protocols can lead to compatibility issues, data mismatches, and increased maintenance costs. As Real Time Networks puts it:

"The security hardware integration process is complex and requires careful planning and detailed implementation strategies."

Maintenance and Hardware Reliability

Integrated systems demand regular upkeep. Key components like access card readers and smart locks can break down due to wear, environmental factors, or misuse. Additionally, user errors account for nearly 80% of false alarms in business security systems, highlighting the need for ongoing training and maintenance.

Cybersecurity Risks

With electronic access control systems, cyberattacks are a real concern. Weak passwords, outdated software, or insufficient network security can expose the system to threats like key card cloning or data breaches.

Cost and Compliance Management

As regulations evolve, staying compliant can be a challenge. Updating your system to meet new standards takes time and resources. Financially, the costs don’t stop after installation. On-premises systems often require $1,000 to $3,000 for licenses and $500 to $1,500 annually for maintenance contracts. Software updates and support can add another $500–1,500 yearly, and maintaining each door might cost $300–800 annually.

Pros and Cons Comparison

Aspect Advantages Disadvantages
Security 35–50% reduction in internal theft; automated responses; unified monitoring Single point of failure risk; network vulnerabilities; 74% of breaches caused by human error
Cost $200–500 savings per employee; 5–15% insurance premium discounts $1,000–3,000 initial licensing; $500–1,500 annual maintenance; $300–800 per door maintenance
Compliance Automated regulatory adherence; detailed audit trails; streamlined code compliance Tracking regulation changes is complex; non-compliance risks; requires dedicated resources
Reliability 3× more reliable with proper upkeep; faster response times; centralized management Aging hardware issues; 80% of false alarms due to user error; troubleshooting can be difficult
Operations Single-platform management; automated responses; remote monitoring Requires specialized expertise; complex planning; ongoing staff training
sbb-itb-ce552fe

How ESI Technologies Supports Security Integration

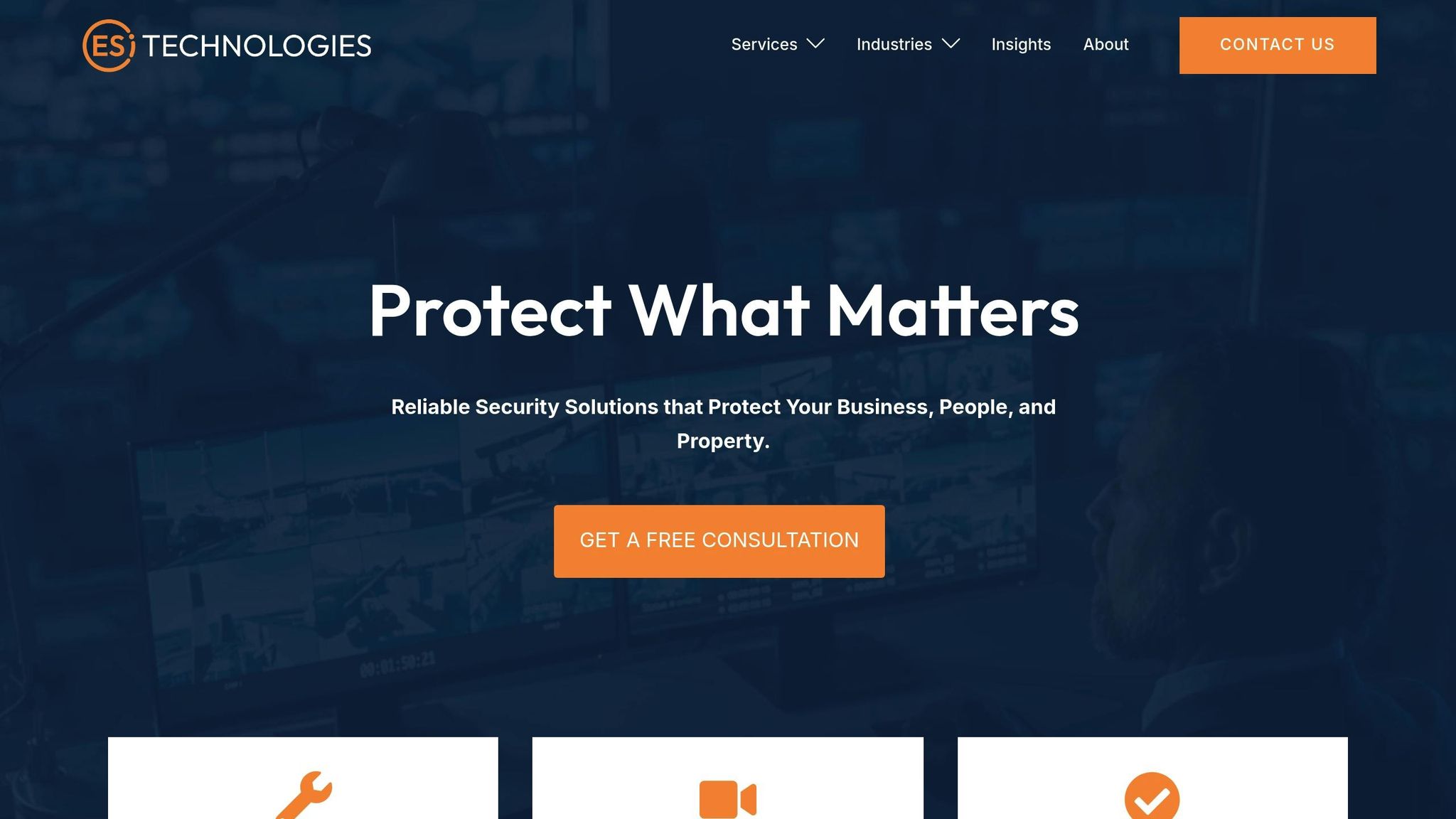

ESI Technologies

With over 40 years of experience, ESI Technologies specializes in integrating exit alarms with access control systems, combining cutting-edge technology with personalized support.

Custom Security Solutions

ESI Technologies recognizes that every facility has its own set of security needs. Their ESI Accessâ„¢ platform serves as a centralized hub for managing all connected security devices, providing tailored solutions for diverse industries.

"At ESI Technologies, we understand that each industry has unique security challenges. That’s why we provide customized security solutions tailored to meet your sector’s specific needs."

One standout feature is the AC64v Access Device, equipped with short-circuit input ports and output controls. These components connect seamlessly with sensors like door magnets and vibration detectors, ensuring compliance with various regulations.

The platform’s centralized software acts as the nerve center of the system, using programmable triggers to integrate with fire detection and intrusion systems. This ensures exit alarms are managed efficiently. Additional features like time-based scheduling allow doors to lock and unlock automatically, while permissions-based controls restrict access to authorized personnel only.

For businesses requiring remote management, ESI Accessâ„¢ offers the convenience of unlocking doors via smartphones or ESI desktop phones. Select ePhonesâ„¢ even include video capabilities, enabling users to visually verify entry requests before granting access. These solutions are further strengthened by real-time monitoring, providing a complete view of the security network.

24/7 Monitoring and Real-Time Alerts

To complement their tailored systems, ESI Technologies provides round-the-clock monitoring, ensuring immediate action in case of breaches or system malfunctions. Their monitoring service includes real-time alerts for events like unauthorized access attempts or emergencies, notifying both the monitoring team and designated mobile devices for rapid response.

A key feature is advanced video verification, which allows the monitoring team to visually confirm threats before contacting authorities. This minimizes false alarms while ensuring genuine emergencies are addressed swiftly.

"Video verification helps reduce false alarms by allowing our monitoring team to visually confirm the presence of a real threat before contacting authorities. This not only speeds up response times in the case of a verified emergency but also prevents unnecessary disruptions from false alarms, saving time and resources." – ESI Technologies

By integrating alarm systems with video monitoring, ESI provides what they call a "full picture" of potential threats. This comprehensive approach helps monitoring professionals make informed decisions about escalating incidents to law enforcement or emergency services.

Experience Across Industries

ESI Technologies brings industry-specific expertise to their security solutions, making them adaptable for a wide range of sectors.

  • In healthcare, biometric systems secure sensitive areas and ensure HIPAA compliance.
  • Corporate offices benefit from advanced access controls that protect data centers and streamline employee tracking.
  • Retailers gain 24/7 surveillance and alarm integration to deter theft and shrinkage.
  • Municipal clients enjoy customized control rooms and secure access for public and government facilities.

Their scalable systems are designed to suit businesses of all sizes, from small retail stores to large corporations and city municipalities. They can also integrate with existing IT infrastructure or legacy surveillance equipment, offering cost-effective upgrade options.

Installations are carried out by certified security professionals who ensure proper setup, ongoing maintenance, and dependable support. These comprehensive systems not only meet compliance standards but also enhance emergency response capabilities, creating a robust security framework for any environment.

Conclusion

Key Takeaways

Physical property crimes result in staggering annual losses of $15.8 billion, and in 2022, 39% of business leaders reported experiencing security breaches.

Integrating exit alarms with access control systems offers several standout advantages:

  • Improved security and emergency response: Unified systems allow for immediate lockdowns, automated threat responses, and seamless unlocking of evacuation routes during emergencies like fires.
  • Simplified compliance: Automated audit trails and on-demand compliance reporting help businesses meet regulations such as HIPAA and PCI DSS.
  • Increased operational efficiency: Centralized management reduces administrative workload, while automation features can cut energy costs by as much as 40%.

"The right integrated approach doesn’t just improve security – it transforms how businesses operate and respond to threats." – Jeff Ball, Owner and CEO, Security Partners

Today, more than 60% of organizations have adopted fully or partially integrated physical and cybersecurity systems. By adhering to strict standards like NFPA and IBC while seamlessly incorporating advanced systems, your facility can achieve both robust safety measures and operational excellence.

These benefits highlight the importance of expert integration to unlock the full potential of modern security solutions.

Why Choose Professional Support

Achieving a successful integration requires deep knowledge of system compatibility, compliance standards, and technical configuration. Professionals ensure quicker installations, reduce the risk of errors, and optimize system performance.

ESI Technologies specializes in handling these complex integrations. Their services include detailed compatibility assessments, tailored configurations to meet specific compliance needs, and ongoing support to keep systems running effectively.

"Future-ready security means thinking beyond today’s threats to build systems that can adapt and grow. The integrated approach gives you this flexibility while delivering immediate returns through cost reduction, streamlined management, and improved security effectiveness." – Security Partners

With certified technicians managing installation and maintenance, businesses can stay focused on their core operations, confident that their integrated security systems are providing comprehensive protection and ensuring compliance every step of the way.

FAQs

What compliance standards should I follow when integrating exit alarms with access control systems?

When integrating exit alarms with access control systems in the U.S., it’s crucial to adhere to specific compliance standards to maintain both safety and functionality. For example, NFPA 731 Chapter 6 requires that magnetic locks on exit doors operate in a fail-safe manner, allowing secure egress during power outages. Similarly, UL 294 evaluates access control systems to ensure they meet strict safety and performance criteria. Meanwhile, IEC 60839-11-2 offers detailed guidance on the installation and operation of electronic access control systems, ensuring they meet various levels of protection.

By following these standards, you can align your systems with safety regulations while improving the security and efficiency of your access control setup.

How can I integrate my exit alarms with access control systems effectively?

To successfully integrate exit alarms with access control systems, start by ensuring the two systems are compatible and capable of using standard communication protocols. Systems with open architecture are particularly useful since they enable smooth interaction between different devices.

It’s also essential to adhere to local building codes, such as the IBC and NFPA standards. These regulations often mandate features like fail-safe electronic locks and proper synchronization with fire alarm systems to guarantee safe exits during emergencies.

For a seamless setup, work with experienced security integrators. They can evaluate your specific needs and ensure the integration aligns with both safety and security requirements.

What challenges can arise when integrating exit alarms with access control systems, and how can they be resolved?

Integrating exit alarms with access control systems isn’t always straightforward. One of the biggest hurdles is compatibility – different devices often rely on distinct technologies or standards, which can complicate integration if not carefully planned from the start.

Another key issue lies in meeting regulatory requirements and adhering to life safety protocols. In emergencies, these systems must work together seamlessly to ensure people can evacuate quickly and safely, all while maintaining essential security measures.

To tackle these challenges, it’s essential to select systems that align with industry standards and are designed to work together. Rigorous testing before implementation and strict adherence to safety regulations can go a long way in creating a dependable and compliant setup.
